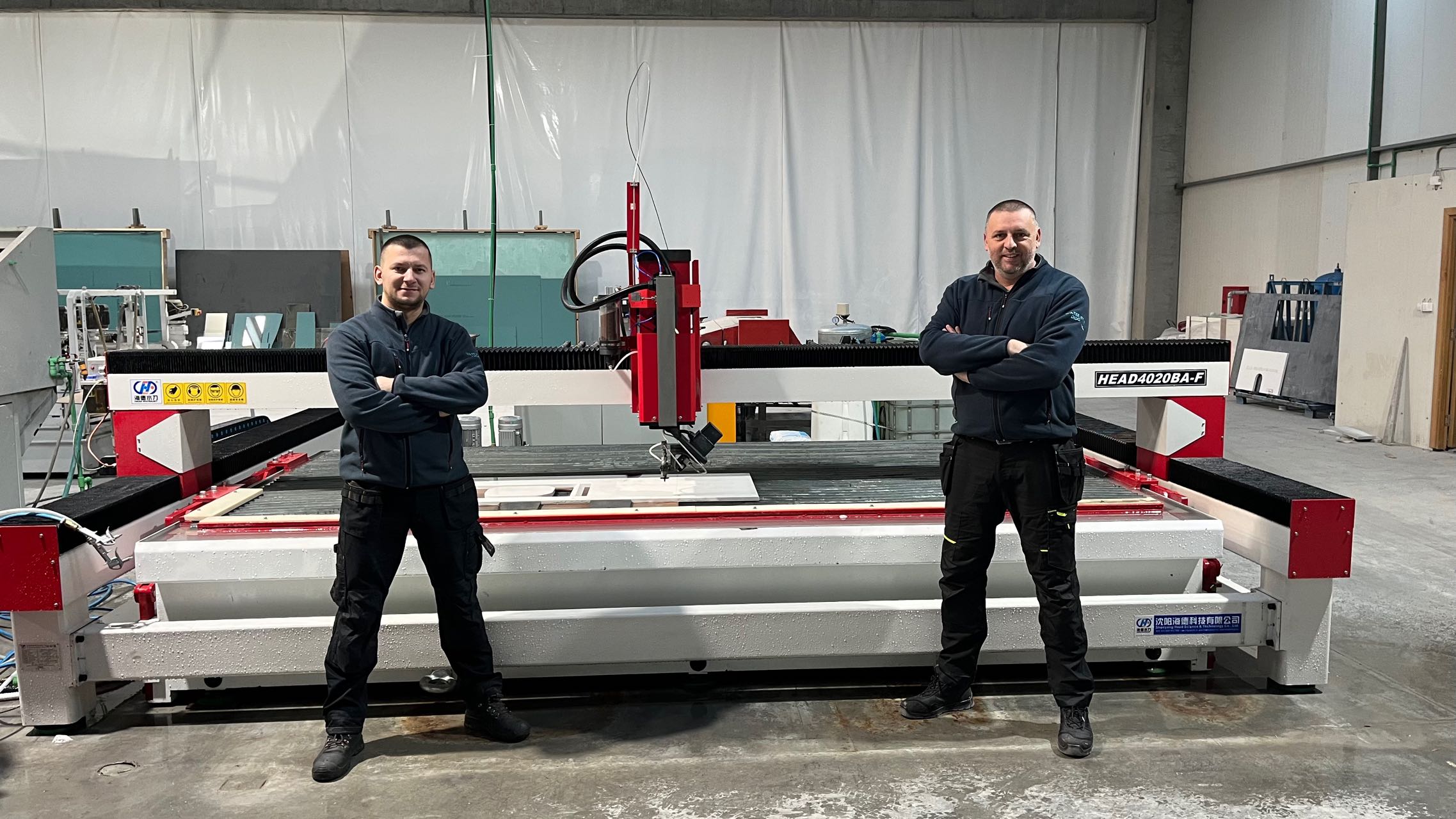

Machine de découpe au jet d'eau
Les systèmes de découpe au jet d'eau sont utilisés lorsque les influences thermiques sur le matériau ne sont pas souhaitées et qu'une précision maximale est requise.Ils convainquent avec flexibilité options de traitement pour une multitude de tâches de coupe sur une grande variété de matériaux.
  • Highly precise and without thermal influence

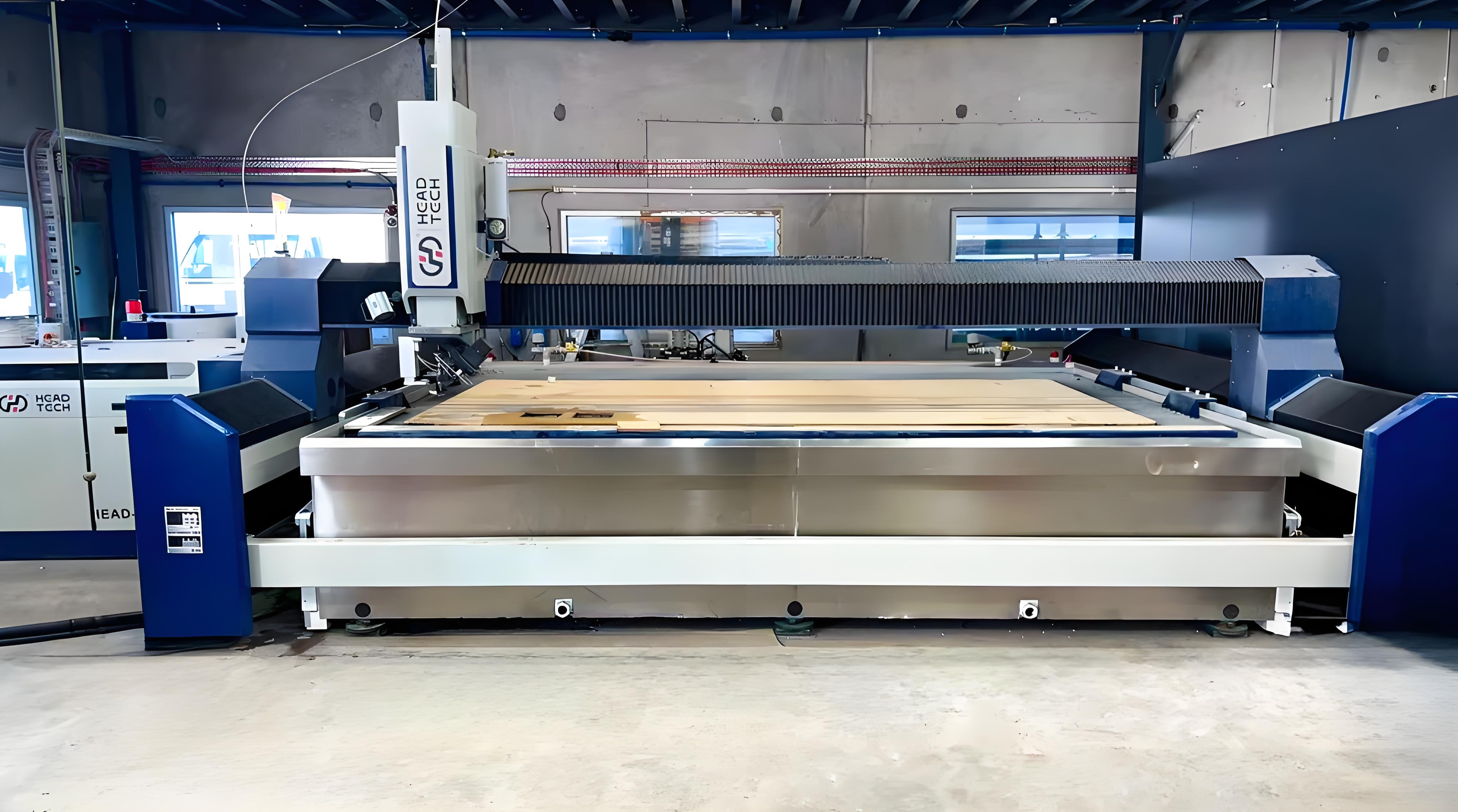

    This is a high-precision CNC waterjet cutting machine designed to machine a wide variety of materials, including those that cannot withstand thermal or mechanical stress.

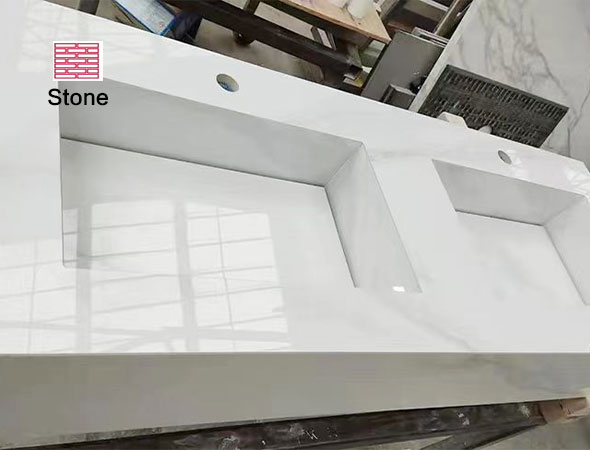

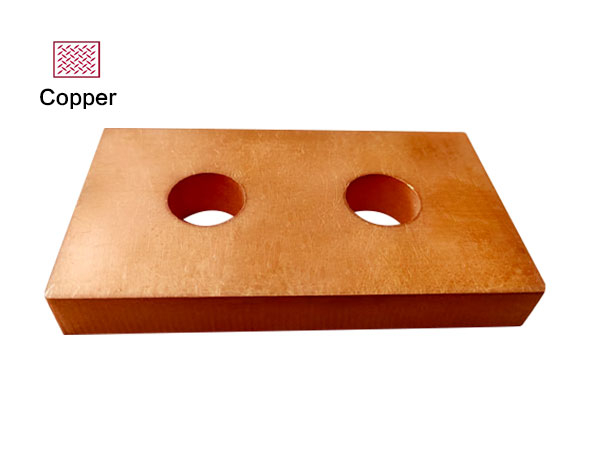

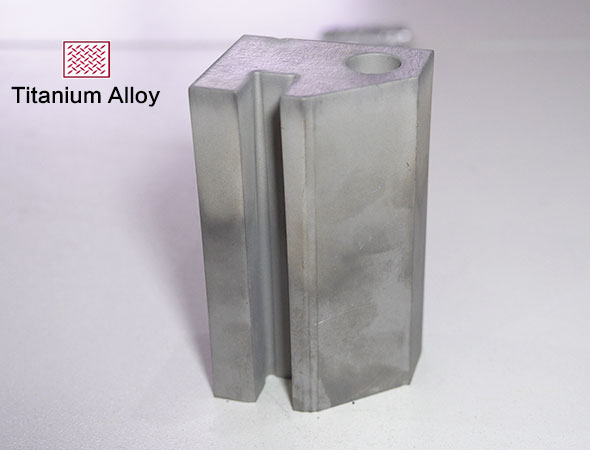

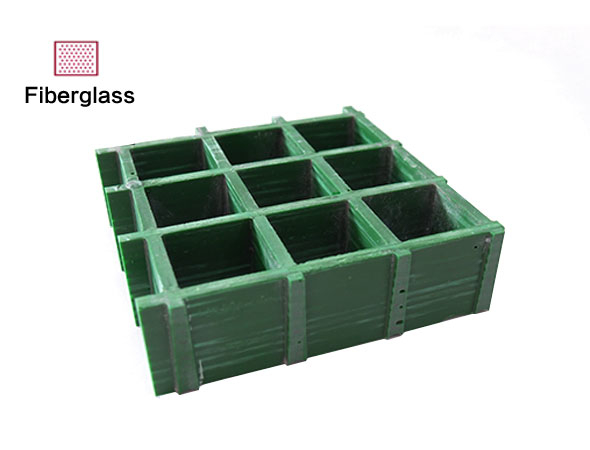

    Pure water or abrasive cutting can be applied to metal, stone, marble, tempered glass, ceramics, plastics, wood, thick corrugated cardboard, foam and sandwich materials, etc.

    The machine can be equipped with a 75 degree 5-axis waterjet rotator for bevel cutting, combined with plasma, pipe and profile cutting or tapping. Additional features include Additive Bevel Processing (ABP) and Taper Compensation (ABC).

    • Cutting accuracy +/- 0.1mm
    • Positioning accuracy +/- 0.02mm
    •PC control 17" touch screen
    •NcStudio PC1MC=6A software *changes DXF documents from AutoCAD into NC process
    •Serial communications between PC and CNC. Open database can shore parameter, click the material parameter will be loaded automatically
    •Calculate length of line and cut-in automatically
    •Control cut-out and cut-in automatically

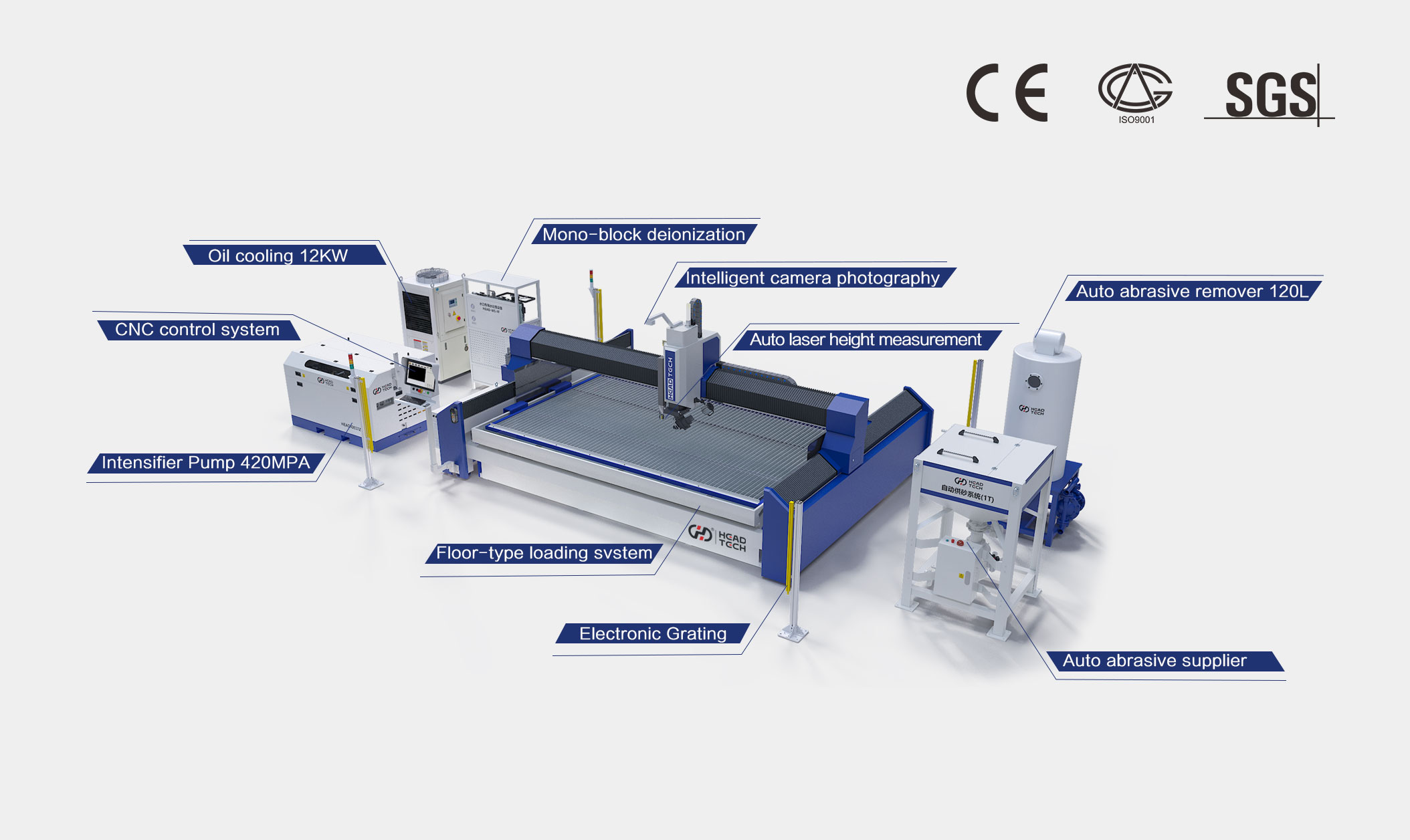

    •High Pressure Pump from 3800 Bar/55,000 Psi - 4137 Bar/60,000 made by Accustream/Hypertherm USA
    •Cooling system
    •Abrasive feeder
    •Water cleaning gun
    •Tool kit
    •Consumables for one year
  • Technical specifications

    X Y Positioning Accuracy ≤±0.05 mm per 300 mm
    Positioning Accuracy +/-0.02 mm
    X,Y dry-run Speed  0-15m/min (if need 30m/min speed,we can do as request )
    Cutting Accuracy  ±0.1mm
    Repeat Accuracy   ≤ ±0.03mm
    Max. Speed X, Y  10000mm/min

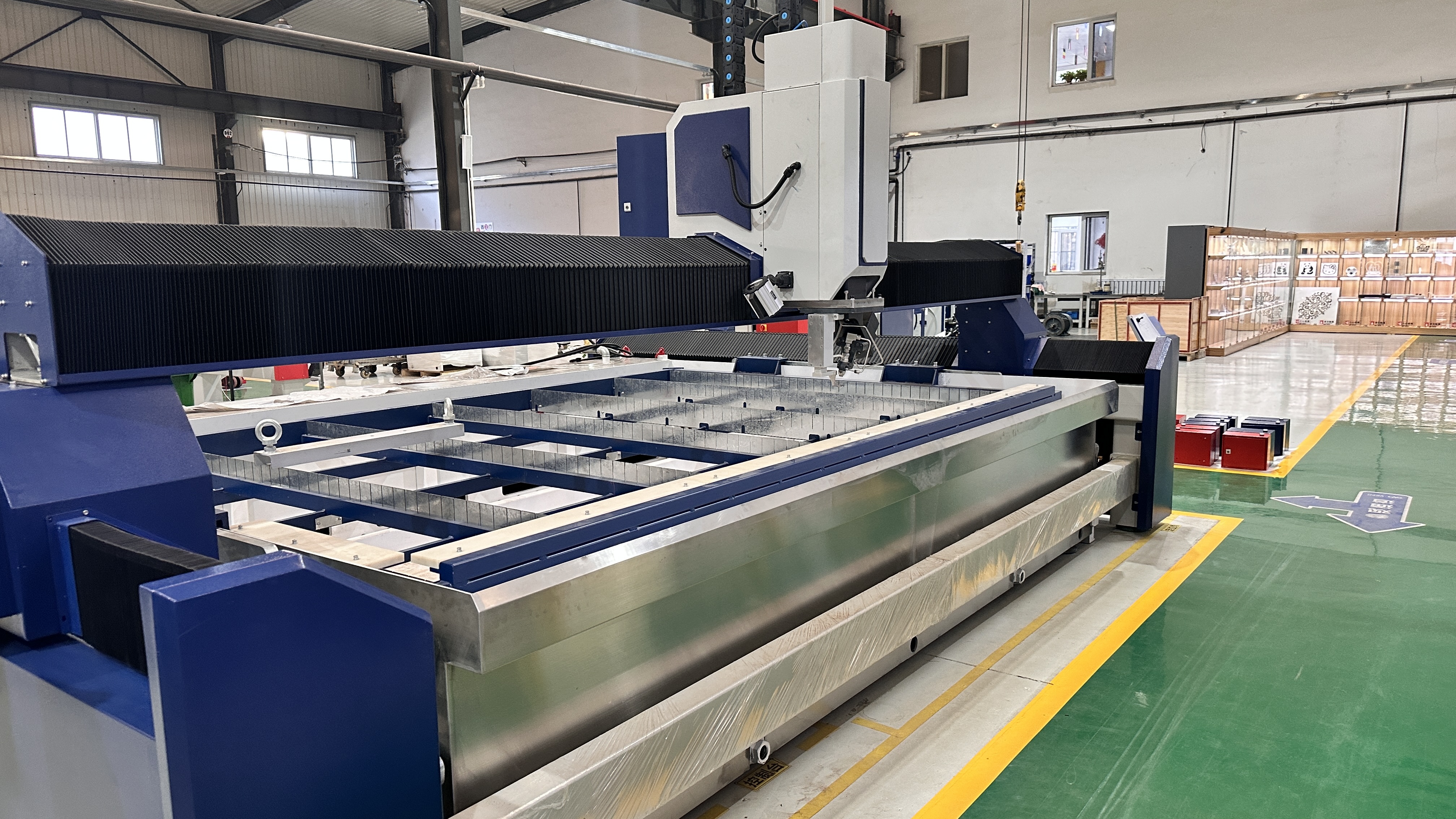

    • Water jet working table independent of the frame, eliminate vibrations and  temperature deformations; keep long time of work.
    • Water tank is reliable and durable, made of steel 5 mm thick.Height 750 mm, convenient for loading and unloading
    • • Slope-type folding cloth protection structure prevents the accumulation of sand splashed during water cutting, which affects the accuracy and life of the stroke.
    • • Z axis is equipped with a lighting system, which is convenient for monitoring and equipment maintenance during equipment operation
    • • Dedicated thick metal cutting water tank, platform load-bearing capacity is 500kg more than similar competing products, longer service life


    • • Integrated integrated CNC system, suitable height, ergonomic design concept The display can be rotated 360 degrees to meet the needs of the operator from all angles
    • • Upgrade to IP65 waterproof and dustproof computer, keyboard and mouse IP65
    • • Increase the splash protection to improve the safety and life of the equipment
    • • An air-conditioning control system is added inside the CNC cabinet. Most of the cooling systems on the market are still cooled by fans to ensure the operating temperature of the electrical components of the equipment and improve the stability of the equipment.
    • • A lighting system is added inside the CNC cabinet to facilitate equipment maintenance and reduce the difficulty of operator maintenance2023-3-1 集成控制柜细节展示(一体控制柜)32023-3-1 集成控制柜细节展示(一体控制柜)1
    • • Function to continue from the same point after stopping.
    • • Automatic programming function.
    • • Pre-cut path simulation function
    • • Automatic tool compensation adjustment function.

    图片9图片10

Donner la priorité à la cohérence et à la précision de la qualité

Nous sommes HEAD Waterjet et nous proposons également des solutions de découpe personnalisées

Nous fabriquons et fournissons des solutions à jet d'eau hautement productives, fiables et intuitives.

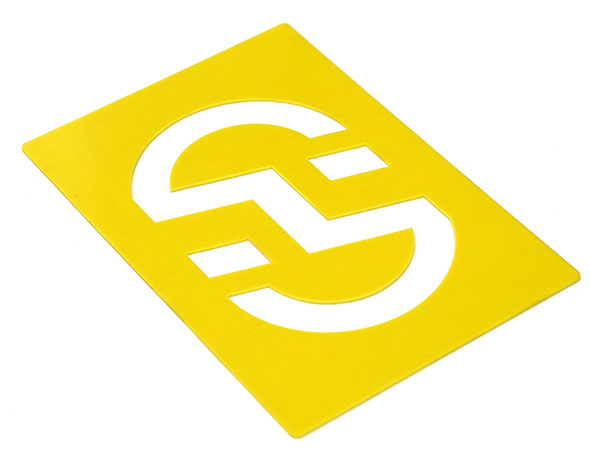

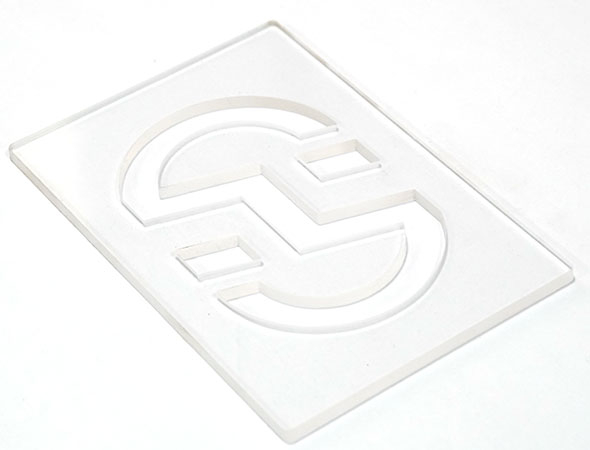

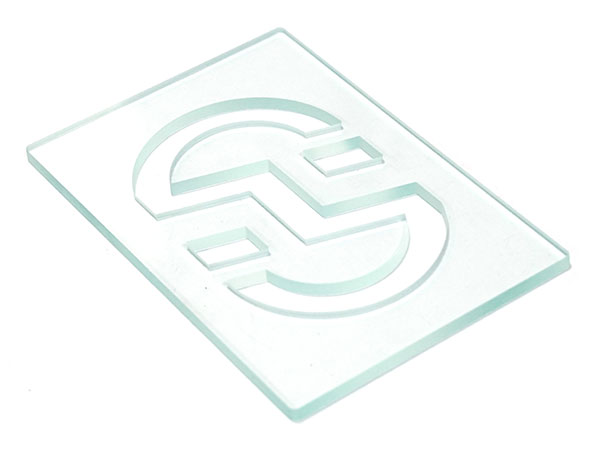

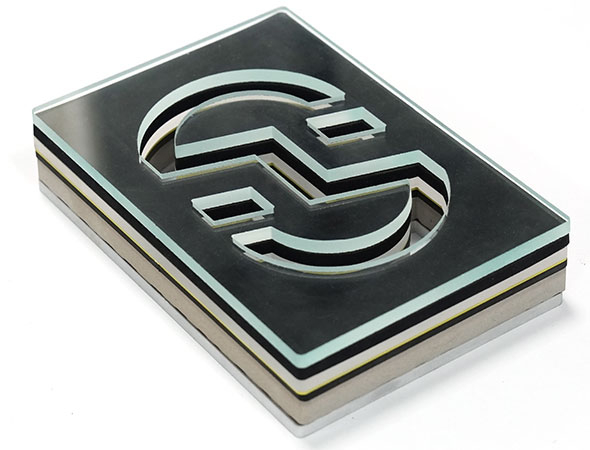

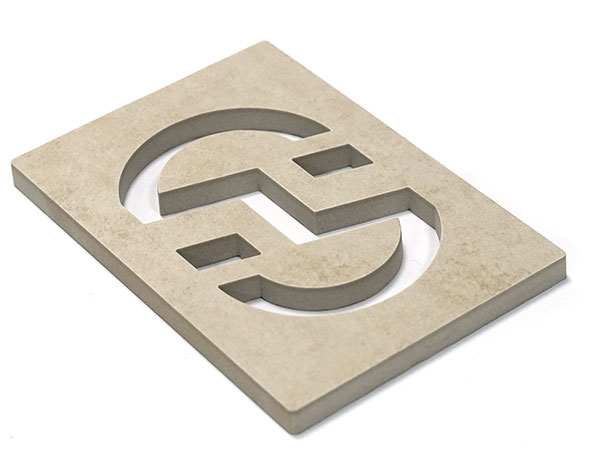

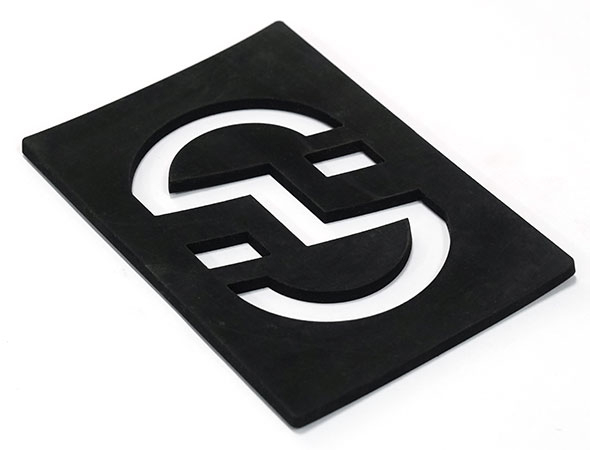

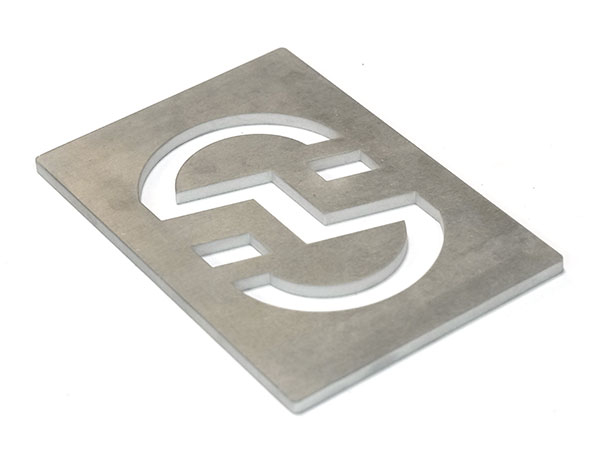

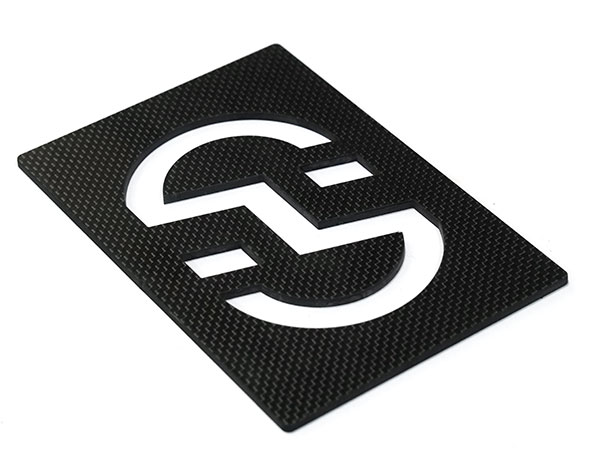

Échantillons de coupe d'eau ici
Afin de vous donner une compréhension plus intuitive de nos produits, nous avons fourni un échantillon gratuit de découpe, en espérant que vous pourrez rapidement comprendre le principe de fonctionnement et les caractéristiques de notre découpe à l'eau.
Équipe technique après-vente locale professionnelle
Nous offrons des conseils avisés par des techniciens qualifiés.Nous nous engageons à fournir un support de pointe pour les machines de découpe au jet d'eau afin de faire avancer l'industrie.
Industries que nous servons​​​​​​​

Depuis plus d'une décennie, nous avons construit et installé des milliers de machines de découpe au jet d'eau dans un portefeuille diversifié d'industries pour répondre aux besoins spécifiques de fabrication et de découpe de matériaux.

Comme Head dispose d'une solide équipe de recherche et développement, de vente de production et de service, Shenyang Head Science and Technology Co., Ltd est devenue une entreprise bien connue dans le domaine du jet d'eau.
